Problem 533

AMC 12 late, AIME early

Geometry Difficulty 4.9 Prove it Iberoamerican Mathematical Olympiad · Ibero-American Mathematical Olympiad

Problem:

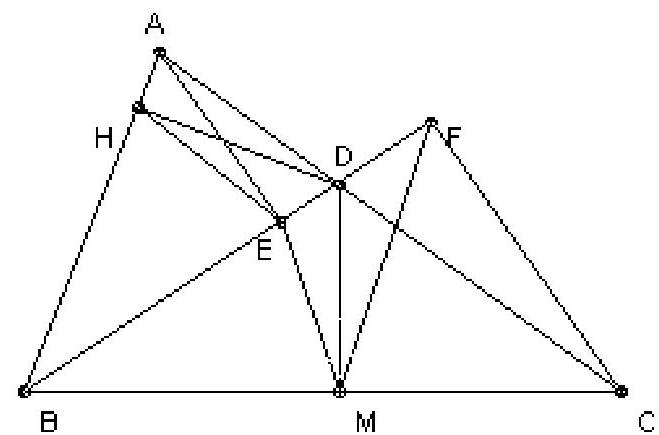

$ABC$ is a triangle. $BD$ is an angle bisector. $E$ , $F$ are the feet of the perpendiculars from $A$ , $C$ respectively to the line $BD$ . $M$ is the foot of the perpendicular from $D$ to the line $BC$ . Show that $\angle DME = \angle DMF$ .

This one wants a proof. Work it on paper, read the official solution, then mark yourself honestly — the ladder only means something if the record is true.

Official solution

Solution:

Let $H$ be the foot of the perpendicular from $D$ to $AB$ . $\angle AHD = \angle AED = 90^\circ$ , so $AHED$ is cyclic. Hence $\angle DAE = \angle DHE$ . But $M$ is the reflection of $H$ in the line $BD$ , so $\angle DME = \angle DAE$ .

$AE$ is parallel to $CD$ , so $\angle DAE = \angle DCF$ . $\angle DFC = \angle DMC$ , so $DMCF$ is cyclic. Hence $\angle DCF = \angle DMF$ . Hence $\angle DME = \angle DMF$ .

Source: MathNet, licensed CC-BY-4.0. Statement and solution reproduced as published; topic, difficulty and ordering added by this site.
