CEMC Euclid, 2007

Algebra Difficulty 3.0 AMC 10/12 Prove it Canada

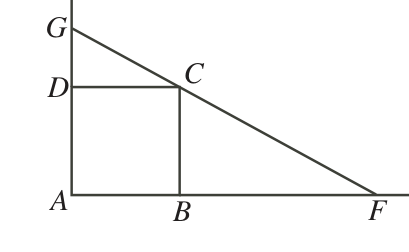

In the diagram, line segment $FCG$ passes through vertex $C$ of square $ABCD$ , with $F$ lying on $AB$ extended and $G$ lying on $AD$ extended. Prove that $\frac{1}{AB}=\frac{1}{AF}+\frac{1}{AG}$ .

Figure for this problem

We don't reproduce this publisher's solutions. Their own solution is here — work the problem first.
