Geometry Difficulty 2.3 Junior Find the answer Canada

$PQRS$ is a square with side length 8. Points $T$ and $U$ are on $PS$ and $QR$ respectively with $QU=TS=1$ .The length of $TU$ is closest to

Pick one

Solution

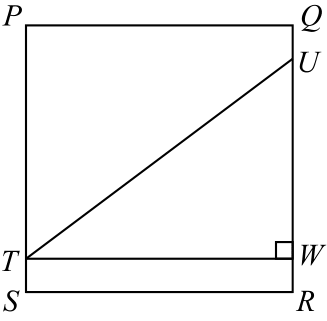

We draw a line through $T$ to point $W$ on $QR$ so that $TW$ is perpendicular to $QR$ . [[IMAGE0]] Since $TWRS$ has three right angles (at $W$ , $R$ and $S$ ), then it must be a rectangle. Therefore, $WR=TS=1$ and $TW=SR=8$ . Since $QU=1$ , then $UW = QR - QU - WR = 8 - 1- 1 = 6$ . Now, $\triangle TWU$ is right-angled at $W$ . By the Pythagorean Theorem, we have $TU^2 = TW^2 + UW^2$ . Thus, $TU^2 = 8^2 + 6^2 = 64+36=100$ . Since $TU>0$ , then $TU = \sqrt{100}=10$ .

Figure for this problem
