CEMC Pascal, 2009

Geometry Difficulty 3.0 AMC 10/12 Find the answer Canada

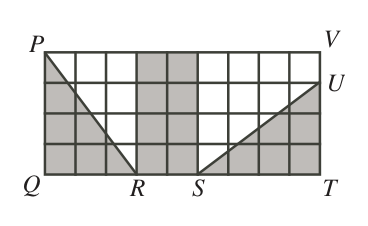

In the diagram, a $4 \times 9$ grid $PQTV$ is formed from thirty-six $1 \times 1$ squares. Lines $PR$ and $US$ are drawn with $R$ and $S$ on $QT$ . What is the ratio of the shaded area to the unshaded area?

(A) $5:9$ (B) $9:8$ (C) $4:5$ (D) $9:5$ (E) $5:4$

Figure for this problem

We don't reproduce this publisher's solutions. Their own solution is here — work the problem first.
