CEMC Euclid, 2008

Algebra Difficulty 3.0 AMC 10/12 Prove it Canada

In the diagram, the large circle has radius $9$ and centre $C(15, 0)$ . The small circles have radius $4$ and centres $A$ and $B$ on the horizontal line $y = 12$ . Each of the two small circles is tangent to the large circle. It takes a bug $5$ seconds to walk at a constant speed from $A$ to $B$ along the line $y = 12$ . How far does the bug walk in $1$ second?

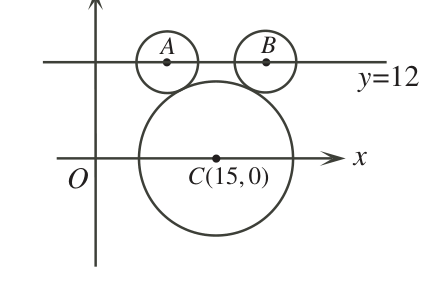

Figure for this problem

We don't reproduce this publisher's solutions. Their own solution is here — work the problem first.
