Geometry Difficulty 7.7 National olympiad, round 2 Prove it Turkey

Let $I$ be the incenter and $AD$ be a diameter of the circumcircle of a triangle $ABC$ . If the point $E$ on the ray $BA$ and the point $F$ on the ray $CA$ satisfy the condition
$BE = CF = \frac{AB + BC + CA}{2},$
show that the lines $EF$ and $DI$ are perpendicular.

Solution

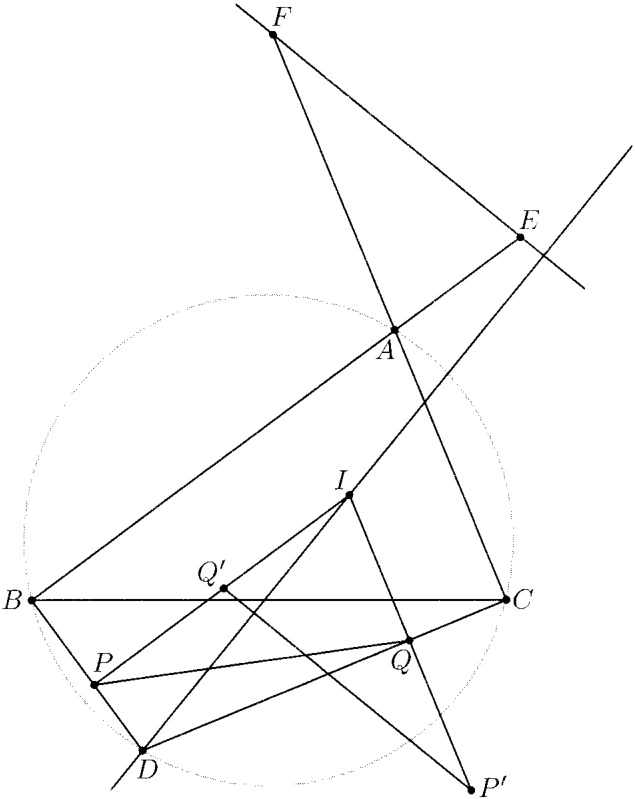

Let $a = BC$ , $b = CA$ , $c = AB$ , and $u = (a + b + c)/2$ . Let $P$ be the point where the line drawn parallel to $AB$ through $I$ meets $BD$ . Similarly define $Q$ . Then $IP = u - b = AF$ , $IQ = u - c = AE$ and $\angle PIQ = \angle BAC = \angle FAE$ . Hence the triangles $PIQ$ and $FAE$ are congruent.

Let $P'$ be the point on the ray $IQ$ with $IP' = IP$ and $Q'$ be the point on the ray $IP$ with $IQ' = IQ$ . Then $P'IQ'$ and $FAE$ are congruent, and since two pairs of their sides are parallel, so is the third: $FE \parallel Q'P'$ .

As $I, P, D, Q$ are concyclic, $\angle DIP + \angle IQ'P' = \angle DIP + \angle IQP = \angle DIP + \angle IDP = 90^\circ$ . Hence $ID$ is perpendicular to $P'Q'$ and consequently to $EF$ .
