Geometry Difficulty 5.9 AIME, harder Prove it Ukraine

Inside an inscribed quadrilateral ABCDABCD a point PP is chosen so that PBC=PDA\angle PBC = \angle PDA, PCB=PAD\angle PCB = \angle PAD. Prove that there exists a circle that touches the lines ABAB, CDCD and also touches the circumscribed circles of the triangles ABPABP, CDPCDP.

Solution

Let EE, FF be the points of intersection of the lines ABAB, CDCD and ADAD, BCBC respectively, and OO be the center of the circumscribed circle of the quadrilateral ABCDABCD (Fig. 50). On the half-line OEOE we choose the point PP', such that OEOP=OA2OE \cdot OP' = OA^2. Let AOB=2α\angle AOB = 2\alpha, BOC=2β\angle BOC = 2\beta, COD=2γ\angle COD = 2\gamma, OEA=x\angle OEA = x. Then the triangles OPBOP'B, OEBOEB are similar by the angle and two adjacent sides OEB=OBP\Rightarrow \angle OEB = \angle OBP'. The triangles OAEOAE, OAPOAP' are also similar OEA=OAP\Rightarrow \angle OEA = \angle OAP'. Hence the points OO, AA, BB, PP' lie on the same circle. Analogously, the points DD, CC, PP' lie on the same circle since OED=ODP=OCP\angle OED = \angle ODP' = \angle OCP'. Therefore, we have:
PBC=OBCOBP=90βx;OED=AEDAEO=1802βγαx; \angle P'BC = \angle OBC - \angle OBP' = 90^\circ - \beta - x; \quad \angle OED = \angle AED - \angle AEO = 180^\circ - 2\beta - \gamma - \alpha - x;
EOC=OCDOED=90γ(1802βγαx)=2β+α+x90; \angle EOC = \angle OCD - \angle OED = 90^\circ - \gamma - (180^\circ - 2\beta - \gamma - \alpha - x) = 2\beta + \alpha + x - 90^\circ;
PDA=EDAEDP=EDAEOC=α+β(2β+α+x90)=90βx. \angle P'DA = \angle EDA - \angle EDP' = \angle EDA - \angle EOC = \alpha + \beta - (2\beta + \alpha + x - 90^\circ) = 90^\circ - \beta - x.

Similarly, PCB=PAD\angle P'CB = \angle P'AD. So, the points AA, PP', CC, FF lie on the same circle, and the points BB, PP', DD, FF lie on the same circle. The same is true for the point PP=PP' \Rightarrow P = P'.

Let ww be the circle that touches the lines ABAB, CDCD at points MM, NN respectively and touches the circumscribed circle of the triangle OABOAB at a point M1M_1. By a known lemma the points MM, M1M_1, OO are collinear and OMOM1=OA2OM \cdot OM_1 = OA^2.

Apply the inversion with the center OO and radius OAOA (Fig. 51). Then the circumscribed circles of the triangles OABOAB, OCDOCD will be mapped to the lines ABAB, CDCD respectively, the point MM will be mapped to the point M1M_1, and so the circle ww will be mapped to ww itself.

So ww touches the image of the line CDCD, that is the circumscribed circle of the triangle OCDOCD. Thus ww is the circle that we were looking for.

Figure 1

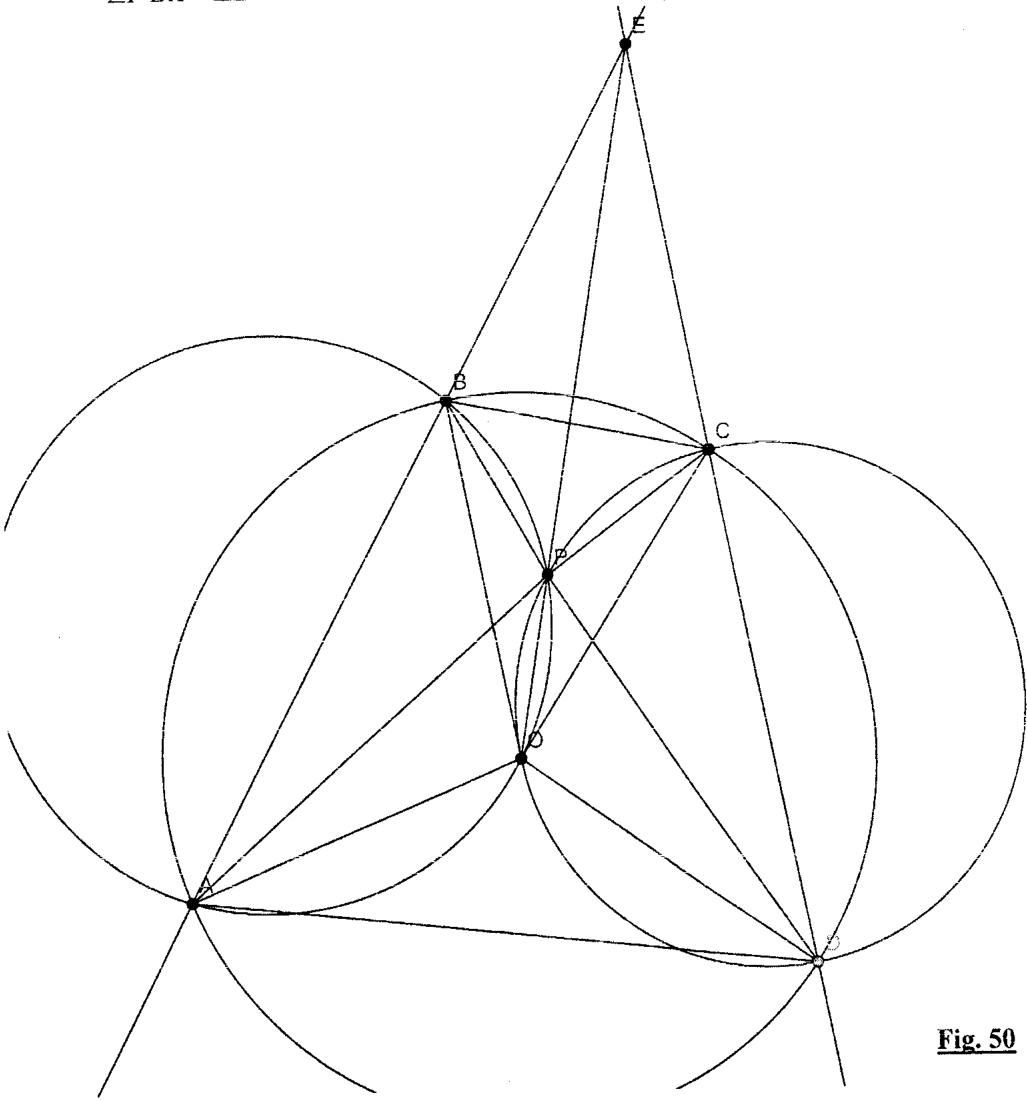

Fig. 50

Figure 2

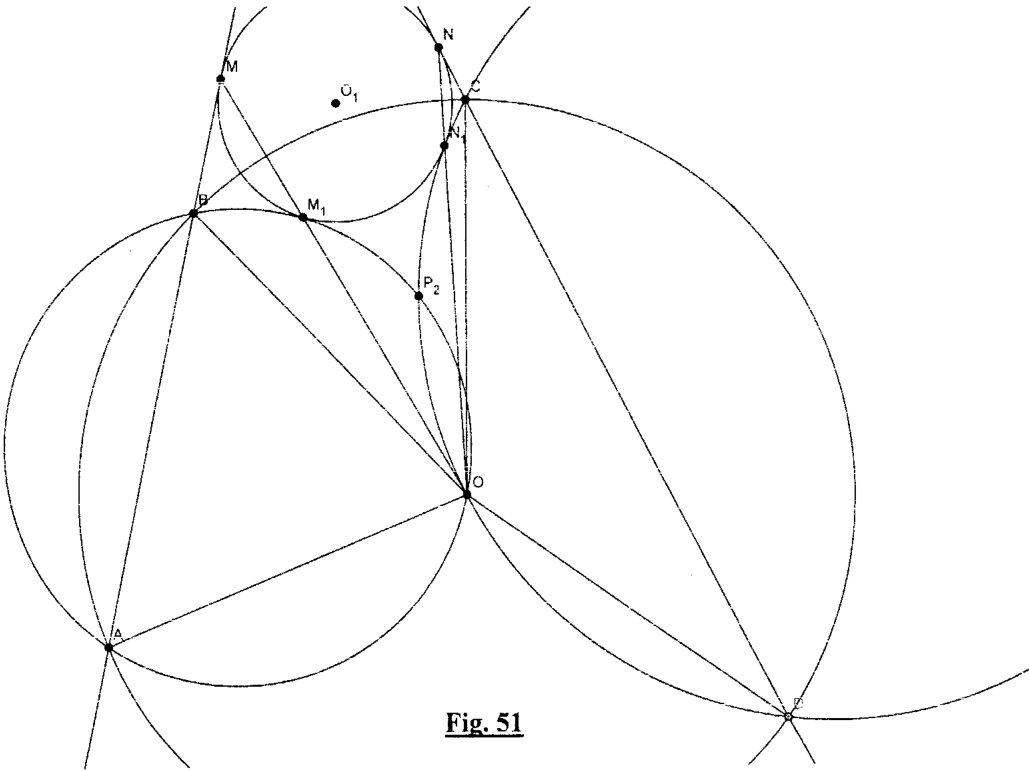

Fig. 51
