Geometry Difficulty 5.7 AIME, harder Prove it Bulgaria

A plane passes through a vertex of the base of a cube of edge 11 and the centers of its two faces which do not contain that vertex. Find the ratio of the volumes of the two parts of the cube cut by the plane.

Solution

Let PP and QQ be the centers of the faces BCC1B1BCC_1B_1 and DCC1D1DCC_1D_1 and let α=(APQ)\alpha = (APQ) (Fig. 1). Since PQBDPQ \parallel BD the plane α\alpha meets the plane (ABCD)(ABCD) at the line through AA which is parallel to BDBD. We denote by TT and SS the intersection points of this line with the lines CBCB and CDCD, respectively.

The lines TPTP and SQSQ meet the edge CC1CC_1 at the intersection point RR of α\alpha and CC1CC_1. Let M=TRBB1M = TR \cap BB_1 and N=SRDD1N = SR \cap DD_1. Then the intersection of α\alpha and the surface of the cube is the quadrilateral AMRNAMRN. (It is easy to see that it is a rhombus.) It is clear that BT=BA=1BT = BA = 1. Hence BB and MM are the midpoints of TCTC and TRTR, respectively. Then BMRC=12\frac{BM}{RC} = \frac{1}{2} and since BM=RC1=1RCBM = RC_1 = 1 - RC, we find BM=13BM = \frac{1}{3}. Analogously DN=13DN = \frac{1}{3}.

Denote by VV the volume of the polytope cut from the cube by the planes (ABCD)(ABCD) and (AMRN)(AMRN) (Fig. 2). Let A2A_2 and C2C_2 be the intersection points of AA1AA_1 and CC1CC_1 with the plane through MNMN and parallel to (ABCD)(ABCD). Then RC2=RCCC2=MB=AA2=13RC_2 = RC - CC_2 = MB = AA_2 = \frac{1}{3} and hence the tetrahedra NMC2RNMC_2R and NMA2ANMA_2A have equal volumes. This shows that V=VABCDA2MC2N=13V = V_{ABCD A_2 MC_2 N} = \frac{1}{3}. Hence the required ratio is 1:21:2.

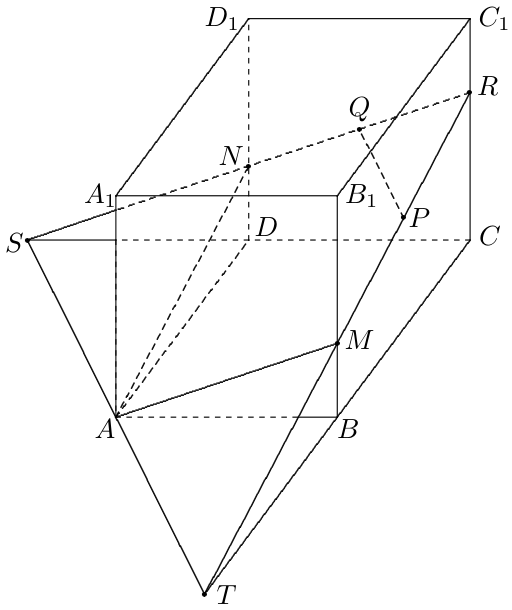

Figure 1
Fig. 1

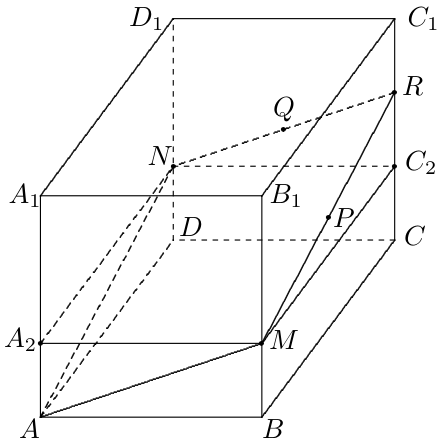

Figure 2
Fig. 2
