Saudi Arabian Mathematical Competitions

Geometry Difficulty 4.9 AIME Prove it Saudi Arabia

Prove that for each n≥4n \geq 4 a parallelogram can be dissected in nn cyclic quadrilaterals.

Solution

Let ABCDABCD be a parallelogram. If ABCDABCD is a rectangle, then it is clear that we can dissect it into nn rectangles by parallel lines to its sides.

Assume that ABCDABCD is not a rectangle. Without loss of generality we can assume that AB≥ADAB \geq AD. Let EE and FF be the midpoints of BCBC and ADAD, respectively. There are two cases: ∠A<90∘\angle A < 90^{\circ} and ∠A>90∘\angle A > 90^{\circ}. Because the second case is analogous to the first one, we shall study only the situation ∠A<90∘\angle A < 90^{\circ}.

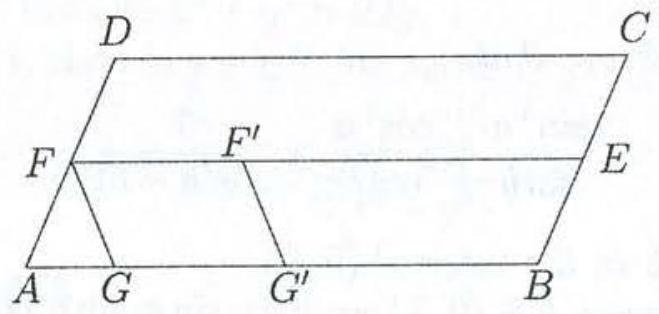

Figure 1

Construct the isosceles triangle AFGAFG, with AF=FGAF = FG and vertex GG on line ABAB. Because ∠A<90∘\angle A < 90^{\circ} we have
AG=2AFcos⁡A<2AF=AD≤AB, AG = 2AF \cos A < 2AF = AD \leq AB,
hence GG belongs to the interior of the segment ABAB. Let G′G' be any point in the interior of segment GBGB. Construct the parallelogram GG′F′FGG'F'F. Then AFF′G′AFF'G' and G′BEF′G'BEF' are isosceles trapezoids, hence they are cyclic quadrilaterals. Similarly, we divide FECDF E C D into two isosceles trapezoids, hence ABCDABCD is dissected into 4 isosceles trapezoids.

In order to pass from nn to n+1n+1 cyclic quadrilaterals it is sufficient to notice that an isosceles trapezoid is divided into isosceles trapezoids by a parallel line to the basis.

Figure 1
