Saudi Arabian Mathematical Competitions

Geometry Difficulty 5.4 AIME, harder Prove it Saudi Arabia

Let ABCDEABCDE be a cyclic pentagon such that the diagonals ACAC and ADAD intersect BEBE at PP and QQ, respectively, with BP⋅QE=PQ2BP \cdot QE = PQ^{2}. Prove that BC⋅DE=CD⋅PQBC \cdot DE = CD \cdot PQ.

Solution

Because triangles PBCPBC and PAEPAE are similar, and triangles QEDQED and QABQAB are similar, we have
BCAE=PBPA,andDEBA=EQAQ. \frac{BC}{AE} = \frac{PB}{PA}, \quad \text{and} \quad \frac{DE}{BA} = \frac{EQ}{AQ}.

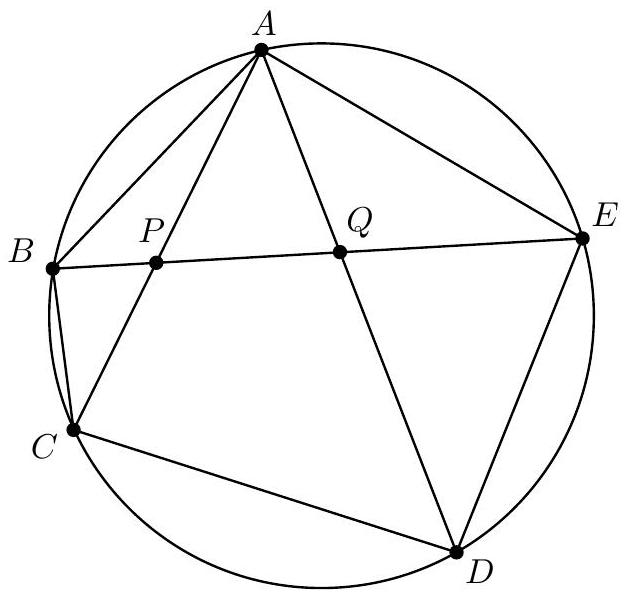

Figure 1
Therefore
BC⋅DEAE⋅BA=PB⋅EQPA⋅AQ=PQ2PA⋅AQ. \begin{equation*} \frac{BC \cdot DE}{AE \cdot BA} = \frac{PB \cdot EQ}{PA \cdot AQ} = \frac{PQ^{2}}{PA \cdot AQ}. \tag{*} \end{equation*}
On the other hand, applying sine law on triangles ABQABQ and APQAPQ, we have
ABAQ=sin⁡∠AQBsin⁡∠EBA,andPQAP=sin⁡∠PAQsin⁡∠AQP. \frac{AB}{AQ} = \frac{\sin \angle AQB}{\sin \angle EBA}, \quad \text{and} \quad \frac{PQ}{AP} = \frac{\sin \angle PAQ}{\sin \angle AQP}.
Finally, by applying sine law on the circumcircle of the pentagon ABCDEABCDE, we get
ABAQ⋅PQAP=sin⁡∠AQBsin⁡∠EBA⋅sin⁡∠PAQsin⁡∠AQP=sin⁡∠CADsin⁡∠EBA=CDEA.(**) \frac{AB}{AQ} \cdot \frac{PQ}{AP} = \frac{\sin \angle AQB}{\sin \angle EBA} \cdot \frac{\sin \angle PAQ}{\sin \angle AQP} = \frac{\sin \angle CAD}{\sin \angle EBA} = \frac{CD}{EA}. \quad \text{(**)}
Combining the two relations (∗*) and (∗∗**), we obtain after cancellation
BC⋅DE=CD⋅PQ. BC \cdot DE = CD \cdot PQ.
