Geometry Difficulty 4.0 AMC 10/12 Find the answer China

Suppose the side of the base and the height of regular triangular pyramid PP-ABCABC are 11 and 2\sqrt{2}, respectively. Then the radius of the inscribed sphere of the pyramid is ______.

A number or a short expression. Spacing and $ signs are ignored.

Solution

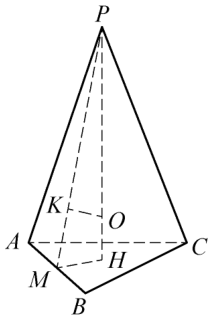

As seen in Fig. 4.1, suppose the projections of the inscribed sphere's center OO on faces ABCABC and ABPABP are HH, KK, respectively, the midpoint of ABAB is MM, and the radius of the sphere is rr. Then PP, KK, MM are collinear, PHM=PKO=π2\angle PHM = \angle PKO = \frac{\pi}{2}, and
Figure 1
Fig. 4.1
OH=OK=r,PO=PHOH=2r,MH=36AB=36,PM=MH2+PH2=112+2=536. OH = OK = r, \quad PO = PH - OH = \sqrt{2} - r, \\ MH = \frac{\sqrt{3}}{6} AB = \frac{\sqrt{3}}{6}, \quad PM = \sqrt{MH^2 + PH^2} = \sqrt{\frac{1}{12} + 2} = \frac{5\sqrt{3}}{6}.
Then we have
r2r=OKPO=sinKPO=MHPM=15. \frac{r}{\sqrt{2} - r} = \frac{OK}{PO} = \sin \angle KPO = \frac{MH}{PM} = \frac{1}{5}.
Therefore, r=26r = \frac{\sqrt{2}}{6}.
The answer is 26\frac{\sqrt{2}}{6}.
