SAUDI ARABIAN IMO Booklet, 2023

Geometry Difficulty 7.9 National Olympiad, round 2 Prove it Saudi Arabia

Let ABCABC be an acute triangle with MM is the midpoint of BCBC and ∠BAM<90∘\angle BAM < 90^\circ, ∠AMB=60∘\angle AMB = 60^\circ. On ray MAMA, take the point NN such that BN=ACBN = AC. Prove that BC=2ANBC = 2AN and the orthocenters and circumcenters of two triangles BMNBMN, AMCAMC form the four vertices of an isosceles trapezoid.

Solution

On MNMN, take the point DD such that ND=AMND = AM. Then, AN=DMAN = DM. According to the sine theorem then
BMsin⁡∠BNM=BNsin⁡∠BMN=ACsin⁡∠AMC=MCsin⁡∠MAC, \frac{BM}{\sin \angle BNM} = \frac{BN}{\sin \angle BMN} = \frac{AC}{\sin \angle AMC} = \frac{MC}{\sin \angle MAC},

so ∠BNM=∠MAC<90∘\angle BNM = \angle MAC < 90^\circ, which implies that △AMC≅△NDB\triangle AMC \cong \triangle NDB so
∠BDM=180∘−∠BDN=180∘−∠AMC=∠AMB=60∘. \angle BDM = 180^\circ - \angle BDN = 180^\circ - \angle AMC = \angle AMB = 60^\circ.
Also, BD=MC=MBBD = MC = MB so triangle BDMBDM is isosceles, with ∠BDM=60∘\angle BDM = 60^\circ so equilateral. Therefore AN=DM=BM=12BCAN = DM = BM = \frac{1}{2}BC.

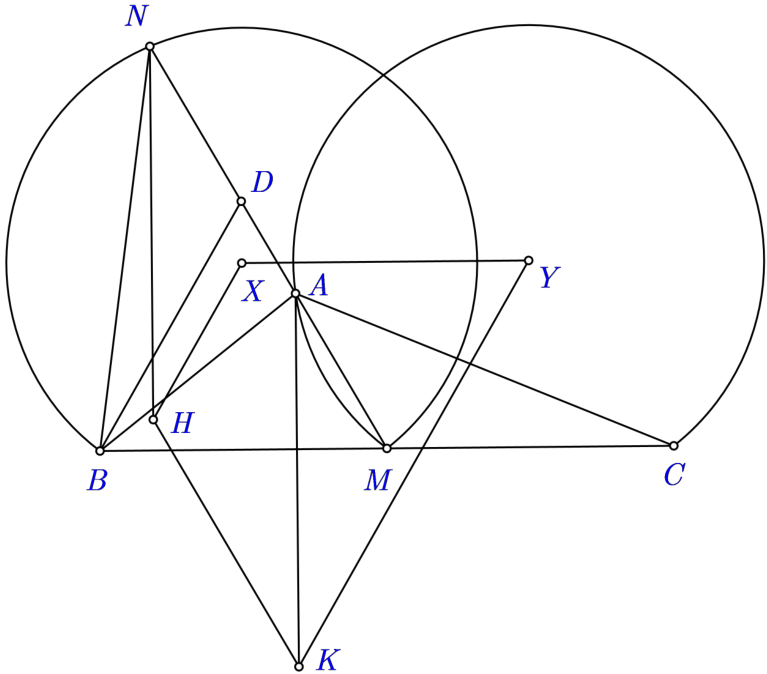

Figure 1

Let X,YX, Y be the centers of the circumcircles of triangles AMC,BMNAMC, BMN and H,KH, K respectively their orthocenters. We have a familiar result: triangle ABCABC has circumradius RR and orthocenter HH then AH=2R∣cos⁡A∣AH = 2R|\cos A|. Applying to this problem, notice that two triangles AMCAMC and BMNBMN have the same radius of circumcircle RR, so
MH=2Rcos⁡60∘=R and MK=2R∣cos⁡120∘∣=R. MH = 2R \cos 60^\circ = R \text{ and } MK = 2R |\cos 120^\circ| = R.
Therefore, four points X,Y,H,KX, Y, H, K are on the same circle with center MM. Next, denote ℓ\ell as the internal bisector of ∠BMN\angle BMN, then MH,MXMH, MX are symmetric through ℓ\ell. And MH=MXMH = MX so we have HX⊥ℓHX \perp \ell. Similarly KY⊥ℓKY \perp \ell so HX∥KYHX \parallel KY. From this it follows that HXYKHXYK is an isosceles trapezoid. □\square
