UKMT Pink Kangaroo, 2022

Geometry Difficulty 2.0 Junior Find the answer United Kingdom

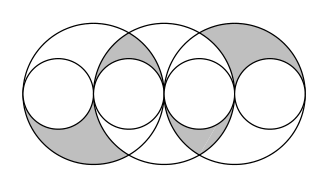

The centres of the seven circles shown all lie on the same line. The four smaller circles have radius $1$ cm. The circles touch, as shown. What is the total area of the shaded regions?

(A) $\pi$ cm $^2$ (B) $2\pi$ cm $^2$ (C) $3\pi$ cm $^2$ (D) $4\pi$ cm $^2$ (E) $5\pi$ cm $^2$

Figure for this problem

We don't reproduce this publisher's solutions. Their own solution is here — work the problem first.

Want a route through all this instead of an archive? The track puts 2,604 problems in a working order, from Junior Challenge level to the IMO shortlist.

Source: UK Mathematics Trust, licensed © UK Mathematics Trust; past papers published free at ukmt.org.uk. Statement reproduced verbatim; metadata (topic, difficulty) added by this project. Solutions are the publisher's, linked not copied.
