UKMT Intermediate Mathematical Challenge, 2022

Geometry Difficulty 3.0 AMC 10/12 Find the answer United Kingdom

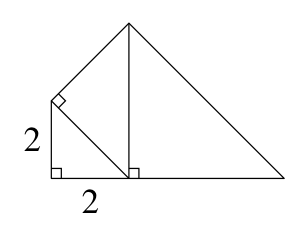

The shape shown is made up of three similar right-angled triangles. The smallest triangle has two sides of side-length 2, as shown. What is the area of the shape?

(A) $14$ (B) $12 + 12\sqrt{2}$ (C) $28$ (D) $24 + 20\sqrt{2}$ (E) $56$

Figure for this problem

We don't reproduce this publisher's solutions. Their own solution is here — work the problem first.
