UKMT Senior Mathematical Challenge, 2017

Geometry Difficulty 3.0 AMC 10/12 Find the answer United Kingdom

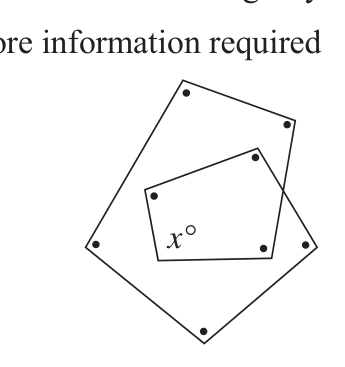

In the diagram, all the angles marked $\bullet$ are equal in size to the angle marked $x°$ . What is the value of $x$ ?

(A) $100$ (B) $105$ (C) $110$ (D) $115$ (E) $120$

Figure for this problem

We don't reproduce this publisher's solutions. Their own solution is here — work the problem first.
