UKMT Senior Mathematical Challenge, 2021

Geometry Difficulty 3.0 AMC 10/12 Find the answer United Kingdom

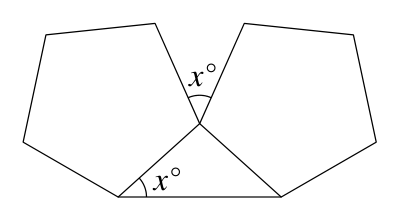

The diagram shows two congruent regular pentagons and a triangle. The angles marked $x^\circ$ are equal. What is the value of $x$ ?

(A) $24$ (B) $30$ (C) $36$ (D) $40$ (E) $45$

Figure for this problem

We don't reproduce this publisher's solutions. Their own solution is here — work the problem first.

Want a route through all this instead of an archive? The track puts 2,604 problems in a working order, from Junior Challenge level to the IMO shortlist.

Source: UK Mathematics Trust, licensed © UK Mathematics Trust; past papers published free at ukmt.org.uk. Statement reproduced verbatim; metadata (topic, difficulty) added by this project. Solutions are the publisher's, linked not copied.
