UKMT Grey Kangaroo, 2018

Geometry Difficulty 2.0 Junior Find the answer United Kingdom

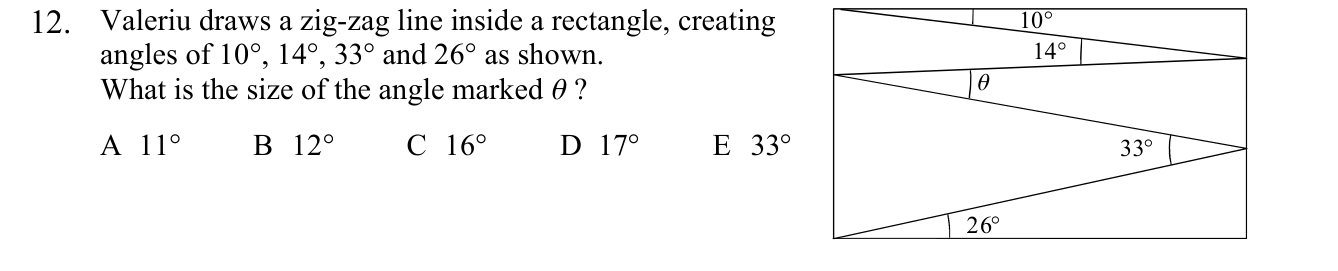

Valeriu draws a zig-zag line inside a rectangle, creating angles of $10°$ , $14°$ , $33°$ and $26°$ as shown. What is the size of the angle marked $\theta$ ?

(A) $11°$ (B) $12°$ (C) $16°$ (D) $17°$ (E) $33°$

Figure for this problem

We don't reproduce this publisher's solutions. Their own solution is here — work the problem first.
