UKMT Junior Mathematical Olympiad, 2015

Geometry Difficulty 2.0 Junior Prove it United Kingdom

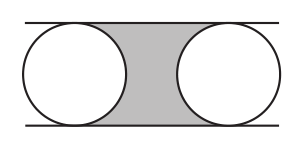

Two circles of radius $1$ cm fit exactly between two parallel lines, as shown in the diagram. The centres of the circles are $3$ cm apart. What is the area of the shaded region bounded by the circles and the lines?

Figure for this problem

We don't reproduce this publisher's solutions. Their own solution is here — work the problem first.
