UKMT Senior Mathematical Challenge, 2017

Geometry Difficulty 3.0 AMC 10/12 Find the answer United Kingdom

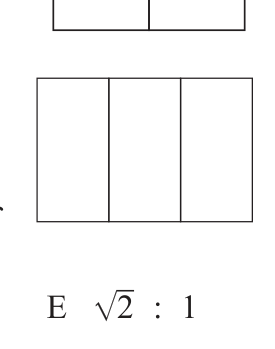

A rectangle is divided into three smaller congruent rectangles as shown. Each smaller rectangle is similar to the large rectangle. In each of these four rectangles, what is the ratio of the length of a longer side to that of a shorter side?

(A) $2\sqrt{3}:1$ (B) $3:1$ (C) $2:1$ (D) $\sqrt{3}:1$ (E) $\sqrt{2}:1$

Figure for this problem

We don't reproduce this publisher's solutions. Their own solution is here — work the problem first.

Want a route through all this instead of an archive? The track puts 2,604 problems in a working order, from Junior Challenge level to the IMO shortlist.

Source: UK Mathematics Trust, licensed © UK Mathematics Trust; past papers published free at ukmt.org.uk. Statement reproduced verbatim; metadata (topic, difficulty) added by this project. Solutions are the publisher's, linked not copied.
