Geometry Difficulty 1.3 Junior Find the answer Canada

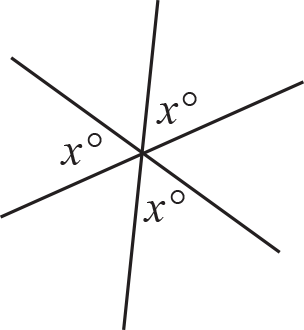

In the diagram, three lines intersect at a point.

What is the value of $x$ ? $30$ $45$ $60$ $90$ $120$

Your answer

A number or a short expression. Fractions can be typed as 3/2, and spacing doesn't matter.

Solution

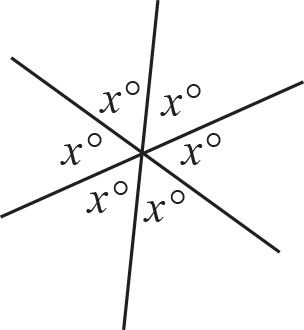

Since opposite angles are equal, then the three unmarked angles around the central point each has measure $x^\circ$ . [[IMAGE0]] Since the angles around a point add to $360^\circ$ , then $6 \times x^\circ = 360^\circ$ . From this, $6x = 360$ and so $x = 60$ .

Figure for this problem
