GeometryDifficulty 3.4AMC 10/12Find the answerCanada
In the diagram, pentagon PQRST has PQ=13, QR=18, ST=30, and a perimeter of 82. Also, ∠QRS=∠RST=∠STP=90∘.The area of the pentagon PQRST is 306297288279270
A number or a short expression. Fractions can be typed as 3/2, and spacing doesn't matter.
Solution

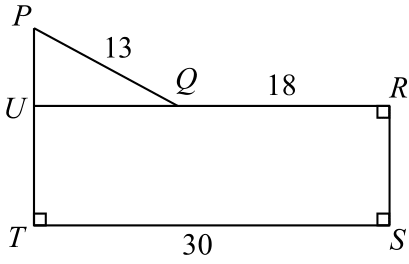

We extend RQ to the left until it meets PT at point U, as shown. [[IMAGE0]] Because quadrilateral URST has three right angles, then it must have four right angles and so is a rectangle. Thus, UT=RS and UR=TS=30. Since UR=30, then UQ=UR−QR=30−18=12. Now △PQU is right-angled at U. By the Pythagorean Theorem, since PU>0, we have PU=PQ2−UQ2=132−122=169−144=25=5 Since the perimeter of PQRST is 82, then 13+18+RS+30+(UT+5)=82. Since RS=UT, then 2×RS=82−13−18−30−5=16 and so RS=8. Finally, we can calculate the area of PQRST by splitting it into △PQU and rectangle URST. The area of △PQU is 21×UQ×PU=21×12×5=30. The area of rectangle URST is RS×TS=8×30=240. Therefore, the area of pentagon PQRST is 30+240=270.
