CEMC Cayley, 2010

Geometry Difficulty 3.0 AMC 10/12 Find the answer Canada

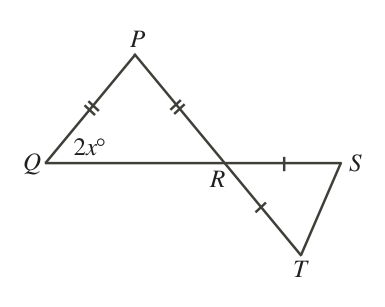

In the diagram, $R$ is the point of intersection of $PT$ and $QS$ , $PQ = PR$ , and $RS = RT$ . If $\angle PQR = 2x^\circ$ , then the measure of $\angle RST$ , in degrees, is

(A) $45 - x$ (B) $90 + \frac{1}{2}x$ (C) $90 - \frac{1}{2}x$ (D) $45 + 2x$ (E) $90 - x$

Figure for this problem

We don't reproduce this publisher's solutions. Their own solution is here — work the problem first.

Want a route through all this instead of an archive? The track puts 2,604 problems in a working order, from Junior Challenge level to the IMO shortlist.

Source: CEMC, University of Waterloo, licensed CC-BY-NC-4.0. Statement reproduced verbatim; metadata (topic, difficulty) added by this project. Solutions are the publisher's, linked not copied.
