CEMC Cayley, 2005

Geometry Difficulty 2.0 Junior Find the answer Canada

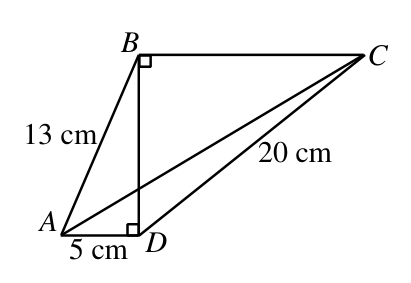

In the diagram, $AB = 13$ cm, $DC = 20$ cm, and $AD = 5$ cm. The length of $AC$ , to the nearest tenth of a centimetre, is

(A) $24.2$ (B) $20.6$ (C) $25.2$ (D) $23.4$ (E) $24.9$

Figure for this problem

We don't reproduce this publisher's solutions. Their own solution is here — work the problem first.
