Geometry Difficulty 2.6 Junior Find the answer Canada

Each of the three nets shown is folded to create a cube.

The three cubes are then arranged so that the numbers on their top
faces are $1$ , $2$ and $3$ , in some order. The sum of the three
numbers on their bottom faces is

Pick one

Solution

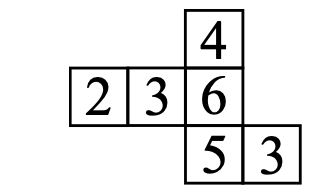

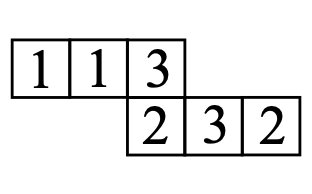

If the number on the top face is a $1$ , the cube is formed from the net shown below since it is the only net that contains the number $1$ . When this net is folded, the number on the face opposite either of the $1$ s is $3$ . [[IMAGE0]] Of the remaining two nets, the net shown below is the only net that contains the number $3$ . Thus if the number on the top face is a $3$ , the cube is formed from this net. When this net is folded, the number on the face opposite either of the $3$ s is the other $3$ . [[IMAGE1]] If the number on the top face is a $2$ , the cube is formed from the remaining net shown below. When this net is folded, the number on the face opposite the $2$ is $8$ . [[IMAGE2]] Therefore, the sum of the three numbers on the bottom faces is $3+3+8=14$ .

Figure for this problem
