CEMC Cayley, 2005

Geometry Difficulty 3.0 AMC 10/12 Find the answer Canada

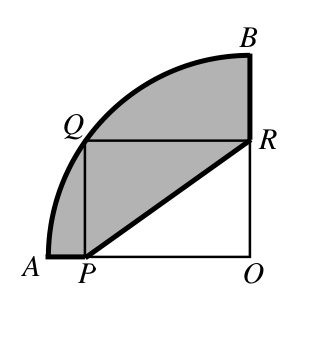

In the diagram, $AOB$ is a quarter circle of radius 10 and $PQRO$ is a rectangle of perimeter 26. The perimeter of the shaded region is

(A) $7 + 5\pi$ (B) $13 + 5\pi$ (C) $17 + 5\pi$ (D) $7 + 25\pi$ (E) $17 + 25\pi$

Figure for this problem

We don't reproduce this publisher's solutions. Their own solution is here — work the problem first.
