Geometry Difficulty 7.4 National olympiad, round 2 Prove it China

Let ABCABC be an acute triangle. Points DD, EE and FF lie on segments BCBC, CACA and ABAB respectively, and each of the three segments ADAD, BEBE and CFCF contains the circumcenter of ABCABC. Prove that if any two of the ratios
BDDC,CEEA,AFFB,BFFA,AEEC,CDDB \frac{BD}{DC}, \frac{CE}{EA}, \frac{AF}{FB}, \frac{BF}{FA}, \frac{AE}{EC}, \frac{CD}{DB}
are integers, then triangle ABCABC is isosceles.

Solution

Proof I Note that there are (62)=15\binom{6}{2} = 15 possible pairs of ratios among the six given in the problem statement. These pairs are of two types: (i) Three of these pairs are reciprocal pairs involving segments from just one side of triangle ABCABC. (ii) The other 12 pairs involve segments from two sides of the triangle. We first consider the former case.

a. If CDDB\frac{CD}{DB} and BDDC\frac{BD}{DC} are both integers, then both of these ratios must be 1 and BD=DCBD = DC. Then in triangle ABCABC, ADAD is the median from AA and DD, because ADAD contains the circumcenter, is also the perpendicular bisector of segment BCBC. It then follows that AB=ACAB = AC and the triangle is isosceles. Similarly, if CEEA\frac{CE}{EA} and AEEC\frac{AE}{EC} are both integers or AFFB\frac{AF}{FB} and BFFA\frac{BF}{FA} are both integers, then triangle ABCABC is isosceles.

b. Let OO be the circumcenter of triangle ABCABC, and let

CAB=α\angle CAB = \alpha, ABC=β\angle ABC = \beta, and BCA=γ\angle BCA = \gamma. We show that any of the ratios can be written in the form sin2xsin2y\frac{\sin 2x}{\sin 2y} where xx and yy are two of α,β,γ\alpha, \beta, \gamma. Since ABCABC is acute, 0<α,β,γ<900^\circ < \alpha, \beta, \gamma < 90^\circ and OO lies in the interior. Hence AOB=2γ\angle AOB = 2\gamma, BOC=2α\angle BOC = 2\alpha, and COA=2β\angle COA = 2\beta. Applying the sine rule to triangles BODBOD and CODCOD gives
BDsinBOD=BOsinBDO \frac{BD}{\sin \angle BOD} = \frac{BO}{\sin \angle BDO}
and
CDsinCOD=COsinCDO \frac{CD}{\sin \angle COD} = \frac{CO}{\sin \angle CDO'}
Next note that BO=COBO = CO and that
BDO+CDO=180=BOD+AOB=COD+AOC. \begin{align*} \angle BDO + \angle CDO &= 180^\circ \\ &= \angle BOD + \angle AOB \\ &= \angle COD + \angle AOC. \end{align*}
It follows that
BDsin2γ=BDsinBOD=CDsinCOD=CDsin2β \frac{BD}{\sin 2\gamma} = \frac{BD}{\sin \angle BOD} = \frac{CD}{\sin \angle COD} = \frac{CD}{\sin 2\beta'}
giving BDCD=sin2γsin2β\frac{BD}{CD} = \frac{\sin 2\gamma}{\sin 2\beta}. Similarly, CEEA=sin2αsin2γ\frac{CE}{EA} = \frac{\sin 2\alpha}{\sin 2\gamma} and AFFB=sin2βsin2α\frac{AF}{FB} = \frac{\sin 2\beta}{\sin 2\alpha}.

Now assume that one of the twelve type (ii) pairs of ratios consists of two integers. Then there are positive integers mm and nn (with mnm \le n) such that
sin2x=msin2zandsin2y=nsin2z \sin 2x = m \sin 2z \quad \text{and} \quad \sin 2y = n \sin 2z
or
sin2z=msin2xandsin2z=nsin2y \sin 2z = m \sin 2x \quad \text{and} \quad \sin 2z = n \sin 2y
for some choice of x,y,zx, y, z with {x,y,z}={α,β,γ}\{x, y, z\} = \{\alpha, \beta, \gamma\}.

Without loss of generality we may assume that
sin2α=msin2γandsin2β=nsin2γ \sin 2\alpha = m \sin 2\gamma \quad \text{and} \quad \sin 2\beta = n \sin 2\gamma
or
sin2γ=msin2αandsin2γ=nsin2β1 \sin 2\gamma = m \sin 2\alpha \quad \text{and} \quad \sin 2\gamma = n \sin 2\beta \qquad \textcircled{1}
for some positive integers mm and nn.

Note that there is a triangle with angles 1802α180^\circ - 2\alpha, 1802β180^\circ - 2\beta, and 1802γ180^\circ - 2\gamma. (It is easy to check that each of these angles is in the interval (0,180)(0^\circ, 180^\circ) and that they sum to 180180^\circ.) Furthermore, a triangle

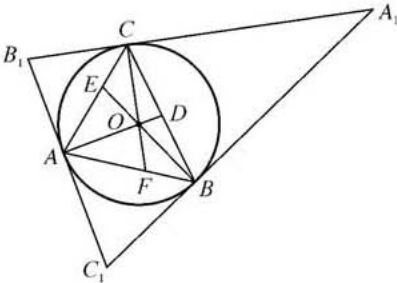

Figure 1
with these angles can be constructed by drawing the tangents to the circumcircle of ABCABC at each of AA, BB and CC. Denote this triangle by A1B1C1A_1B_1C_1 where A1A_1 is the intersection of the tangents at BB and CC, B1B_1 is the intersection of the tangents at CC and AA, and C1C_1 is the intersection of the tangents at AA and BB. Applying the sine rule to triangle A1B1C1A_1B_1C_1 and by 1\textcircled{1} we find
A1B1:B1C1:C1A1=sinC1:sinA1:sinB1=sin2γ:sin2α:sin2β, \begin{aligned} A_1B_1 : B_1C_1 : C_1A_1 &= \sin \angle C_1 : \sin \angle A_1 : \sin \angle B_1 \\ &= \sin 2\gamma : \sin 2\alpha : \sin 2\beta, \end{aligned}
that is,
A1B1:B1C1:C1A1=1:m:n A_1B_1 : B_1C_1 : C_1A_1 = 1 : m : n
or
A1B1:B1C1:C1A1=mn:n:m.2 A_1B_1 : B_1C_1 : C_1A_1 = mn : n : m. \qquad \textcircled{2}
By the triangle inequality, it follows that 1+m<n1 + m < n (that is, m=nm = n) or n+m>nmn + m > nm (that is, (n1)(m1)<1(n-1)(m-1) < 1 and m=1m = 1). We deduce that either sin2α=sin2β\sin 2\alpha = \sin 2\beta or sin2γ=sin2α\sin 2\gamma = \sin 2\alpha. But then either AFFB=BFFA\frac{AF}{FB} = \frac{BF}{FA} or CEEA=AEEC\frac{CE}{EA} = \frac{AE}{EC}, by case (a), triangle ABCABC is isosceles.

Proof II (We maintain the notations used in Proof I.) We only consider those 12 pairs of ratios of type (ii). Without loss of generality we may assume that each of the following sets {BDDC,CDDB}\{\frac{BD}{DC}, \frac{CD}{DB}\} and {AFFB,BFFA}\{\frac{AF}{FB}, \frac{BF}{FA}\} has an element taking integer values. By symmetry, we consider three cases:

a. In this case, we assume that BDDC=m\frac{BD}{DC} = m and BFFA=n\frac{BF}{FA} = n for some positive integers mm and nn. Applying Menelaus's theorem to line AODAOD and triangle BCFBCF yields
AOODDCCBBFFA=1 \frac{AO}{OD} \cdot \frac{DC}{CB} \cdot \frac{BF}{FA} = 1
or
AOOD=CBDCFABF=m+1n. \frac{AO}{OD} = \frac{CB}{DC} \cdot \frac{FA}{BF} = \frac{m+1}{n}.
Likewise, applying Menelaus's theorem to line COFCOF and triangle BADBAD yields COOF=n+1m\frac{CO}{OF} = \frac{n+1}{m}.

Since triangle ABCABC is acute, OO lies on segment ADAD and CFCF with AO>ODAO > OD and CO>OFCO > OF. Hence m+1>nm+1 > n and n+1>mn+1 > m, implying that m1<n<m+1m-1 < n < m+1. Since mm and nn are integers, we must have m=nm=n. It is then not difficult to see that AA and CC are symmetric with respect to line BFBF and triangle ABCABC is isosceles with AB=CBAB = CB.

b. In this case, we assume that CDDB=m\frac{CD}{DB} = m and AFFB=n\frac{AF}{FB} = n for some positive integers mm and nn. Applying Ceva's theorem gives
AFFBBDDCCEEA=1orCEEA=mn. \frac{AF}{FB} \cdot \frac{BD}{DC} \cdot \frac{CE}{EA} = 1 \quad \text{or} \quad \frac{CE}{EA} = \frac{m}{n}.
Applying Menelaus's theorem to line BOEBOE and triangle ACFACF yields
BOOEECCAAFFB=1 \frac{BO}{OE} \cdot \frac{EC}{CA} \cdot \frac{AF}{FB} = 1
or
BOOE=FBAFCAEC=m+nmn. \frac{BO}{OE} = \frac{FB}{AF} \cdot \frac{CA}{EC} = \frac{m+n}{mn}.
Since triangle ABCABC is acute, OO lies on segment BEBE and EO<BOEO < BO. Hence m+nmnm+n \ge mn or (m1)(n1)1(m-1)(n-1) \le 1. Since mm and nn are positive integers, we deduce that one of mm and nn is equal to 1; that is, either AF=FBAF = FB or BD=DCBD = DC. In either case, triangle ABCABC is isosceles.
