Junior Balkan Mathematical Olympiad

Geometry Difficulty 6.5 National Olympiad Prove it Greece

Let ABCDABCD be a convex quadrilateral with ∠DAC=∠BDC=36∘\angle DAC = \angle BDC = 36^\circ, ∠CBD=18∘\angle CBD = 18^\circ and ∠BAC=72∘\angle BAC = 72^\circ. The diagonals ACAC and BDBD intersect at point PP. Determine the measure of ∠APD\angle APD.

Solution

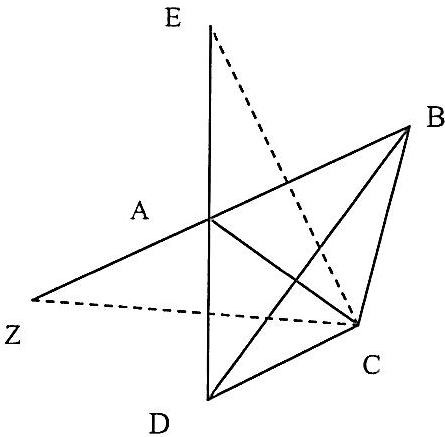

In the rays DADA and BABA we take a point EE and ZZ, respectively, such that AC=AE=AZAC = AE = AZ.

Since DEC^=DAC^2=18∘=CBD^\widehat{DEC} = \frac{\widehat{DAC}}{2} = 18^\circ = \widehat{CBD}, the quadrilateral DEBCDEBC is cyclic.

Similarly, the quadrilateral CBZDCBZD is cyclic, because
AZC^=BAC^2=36∘=BDC^. \widehat{AZC} = \frac{\widehat{BAC}}{2} = 36^\circ = \widehat{BDC}.

Figure 1
Figure 8
Figure 2
Figure 9

Therefore the pentagon BCDZEBCDZE is inscribed in the circle K(A,AC)K(A, AC). It gives AC=ADAC = AD and ACD^=ADC^=180∘−36∘2=72∘\widehat{ACD} = \widehat{ADC} = \frac{180^\circ - 36^\circ}{2} = 72^\circ, which gives ADP^=36∘\widehat{ADP} = 36^\circ and APD^=108∘\widehat{APD} = 108^\circ.

Alternative solution:

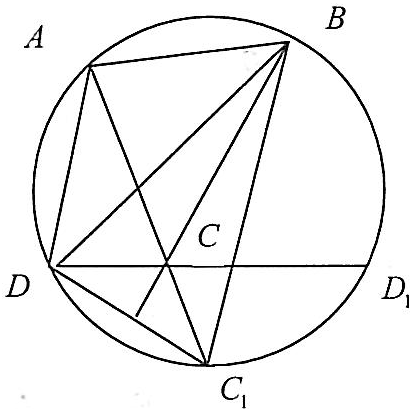

See the figure in the right. If C1C_1 is the symmetric point of DD with respect to the line BCBC, then ABC1DABC_1D is inscribable. Since BAC1^=72∘\widehat{BAC_1} = 72^\circ and BDD1^=36∘\widehat{BDD_1} = 36^\circ we have that DD1DD_1 is bisector of the angle BDC1BDC_1 and hence C1C_1 is the incenter of the triangle BDC1BDC_1. Therefore we have
DC1A^=AC1B^=36∘andDPA^=72∘+144∘2=108∘. \widehat{DC_1A} = \widehat{AC_1B} = 36^\circ \quad \text{and} \quad \widehat{DPA} = \frac{72^\circ + 144^\circ}{2} = 108^\circ.
