Italian Mathematical Olympiad, 2003

Geometry Difficulty 3.6 AMC 10/12 Find the answer Italy

Problem:

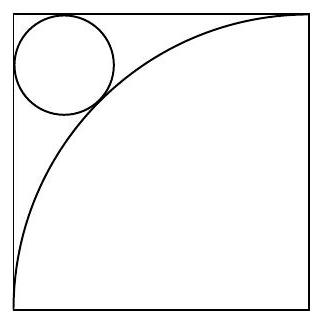

What is the measure of the radius of the small circle in the figure alongside, if the side of the square is $1$ long?

Figure for this problem

Pick one

Solution

Solution:

The answer is (A). With reference to the figure alongside, letting $r$ be the required radius, we have $1 + r + r \sqrt{2} = \sqrt{2}$ , from which $r = \frac{\sqrt{2} - 1}{\sqrt{2} + 1}$ and finally, rationalizing, $r = 3 - 2 \sqrt{2}$ .
