UKMT Junior Mathematical Challenge, 2020

Geometry Difficulty 2.0 Junior Find the answer United Kingdom

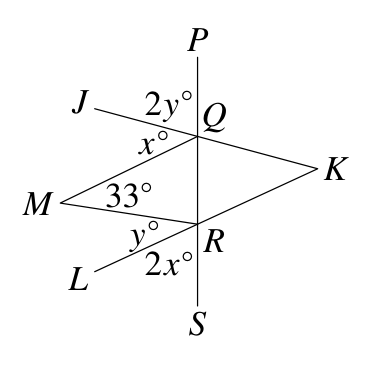

In the diagram, $PQRS$ , $JQK$ and $LRK$ are straight lines. What is the size of the angle $JKL$ ?

(A) $34°$ (B) $35°$ (C) $36°$ (D) $37°$ (E) $38°$

Figure for this problem

We don't reproduce this publisher's solutions. Their own solution is here — work the problem first.
