Geometry Difficulty 4.7 AIME Find the answer Canada

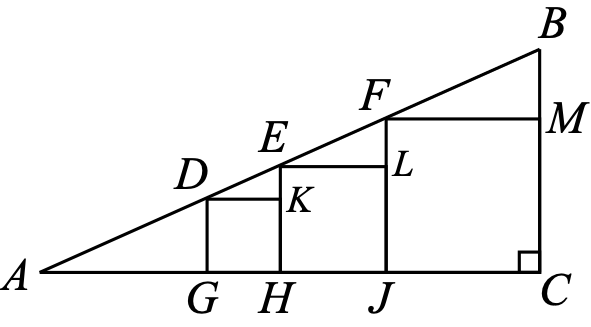

In the diagram, $\triangle ABC$ is right-angled at $C$ . Points $D$ , $E$ , $F$ are on $AB$ , points $G$ , $H$ , $J$ are on $AC$ , point $K$ is on $EH$ , point $L$ is on $FJ$ , and point $M$ is on $BC$ so that $DKHG$ , $ELJH$ and $FMCJ$ are squares.The area of $DKHG$ is $16$ and the area of $ELJH$ is $36$ . The area of square $FMCJ$ is

Pick one

Solution

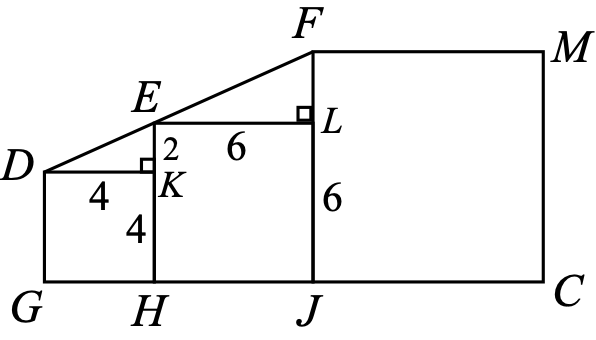

Since squares $DKHG$ , $ELJH$ and $FMCJ$ have their bases along the same line, then $DK$ , $EL$ and $FM$ are parallel. Since $DK$ and $EL$ are parallel, then $\angle EDK = \angle FEL$ . Since $\triangle EKD$ is right-angled at $K$ and $\triangle FLE$ is right-angled at $L$ , then $\triangle EKD$ and $\triangle FLE$ are similar. [[IMAGE0]] Since the area of $DKHG$ is $16$ , then its side length is $\sqrt{16} = 4$ . Since the area of $ELJH$ is $36$ , then its side length is $\sqrt{36} = 6$ . Since $EH=6$ and $KH = 4$ , then $EK = 2$ . Therefore, $\triangle EKD$ has $EK = 2$ and $DK = 4$ ; in other words, $EK: DK = 1:2$ .

Since $\triangle FLE$ is similar to $\triangle EKD$ , then $FL:LE = 1:2$ . Since $EL = 6$ , then $FL = 3$ . Since $LJ = 6$ and $FL = 3$ , then $FJ = FL + LJ = 9$ .

Therefore, the area of square $FMCJ$ is $9^2$ or $81$ .
